Phase2 Microwave have a range of High Power Loads/Terminations.
Typical parameters for these units are shown below, but other
design flange types and heatsink fins, can be accommodated
on request.
This email address is being protected from spambots. You need JavaScript enabled to view it.
| RF High Power Loads | ||||||||
| Model | Waveguide |
Passband
|
Power |
Passband Return Loss (dB) |
Overall Length (mm) |
Data Sheet Download |
3D Model Download |
|
 |
000105 | WG15 | 6.5-10.0 | 0.30 | >20 | 152 |  |
 |
 |

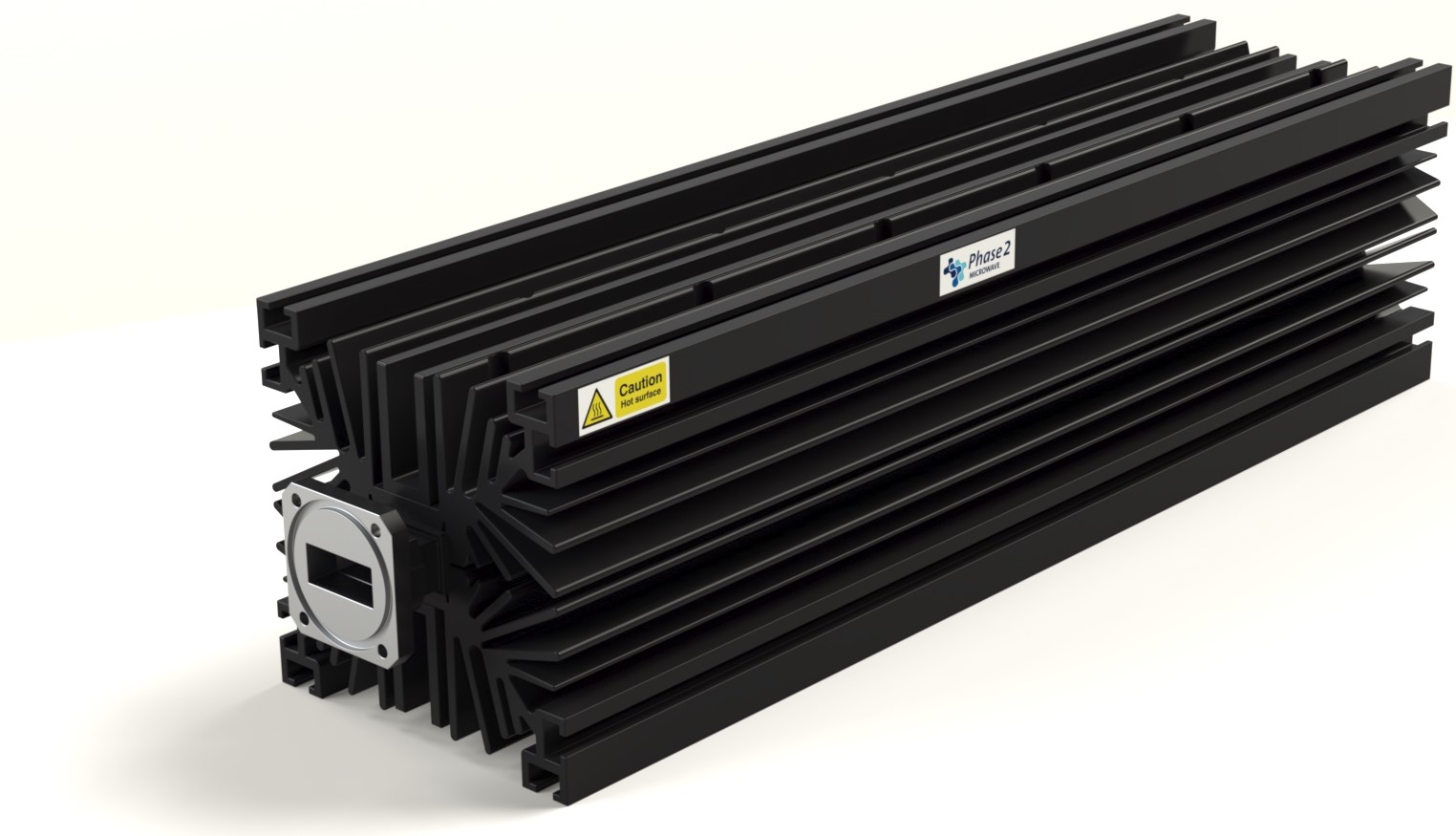

000111 | WG15 | 6.58-10.0 | 2.50 | >20 | 210 | |
|
 |

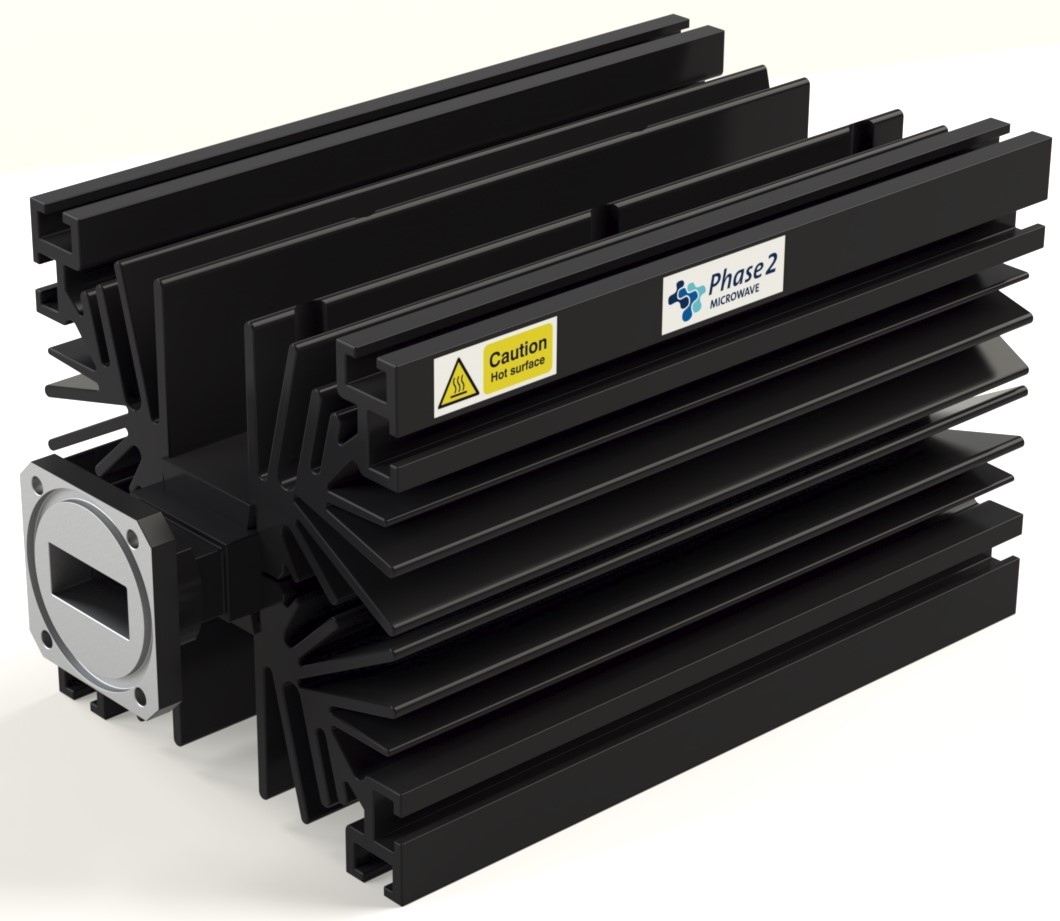

001312 | WG15 | 6.50-10.0 | 1.00 | >20 | 240 | |
|
 |

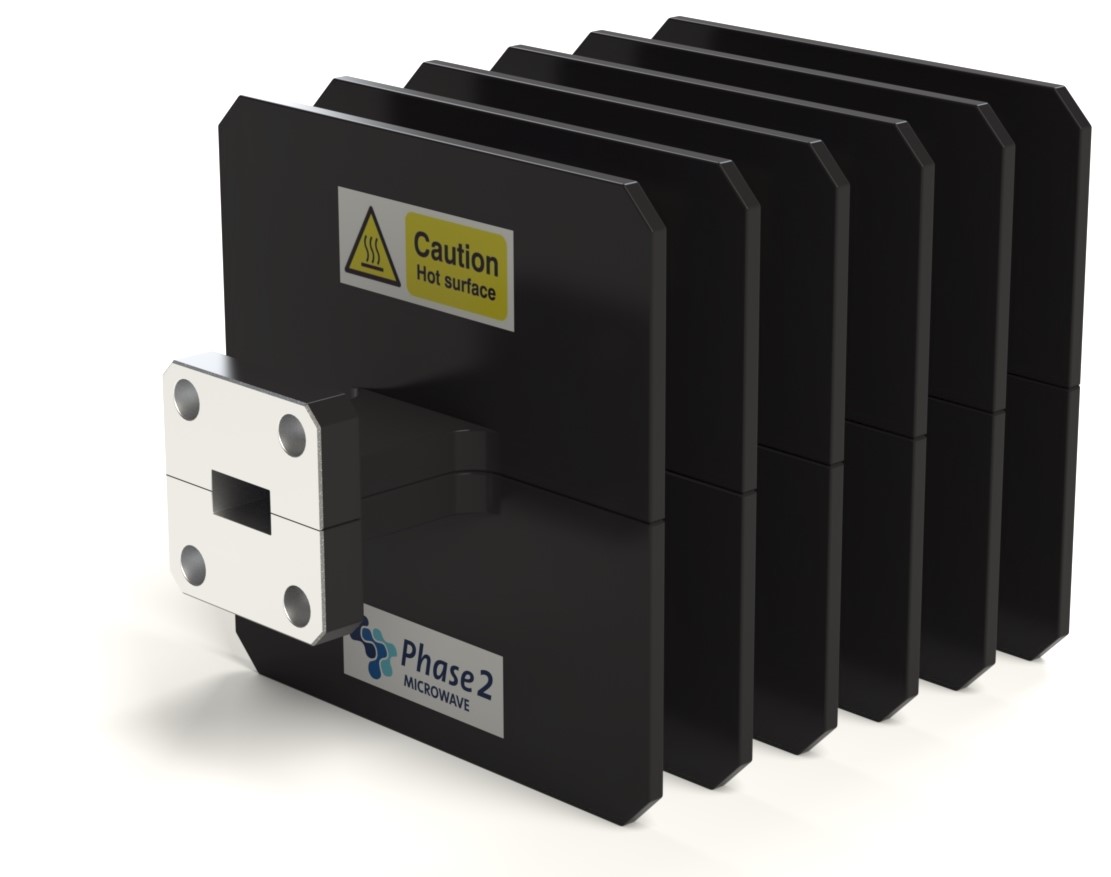

006155 | WG22 | 26.5-40.0 | 0.10 | >20 | 83 | |
|
|
|

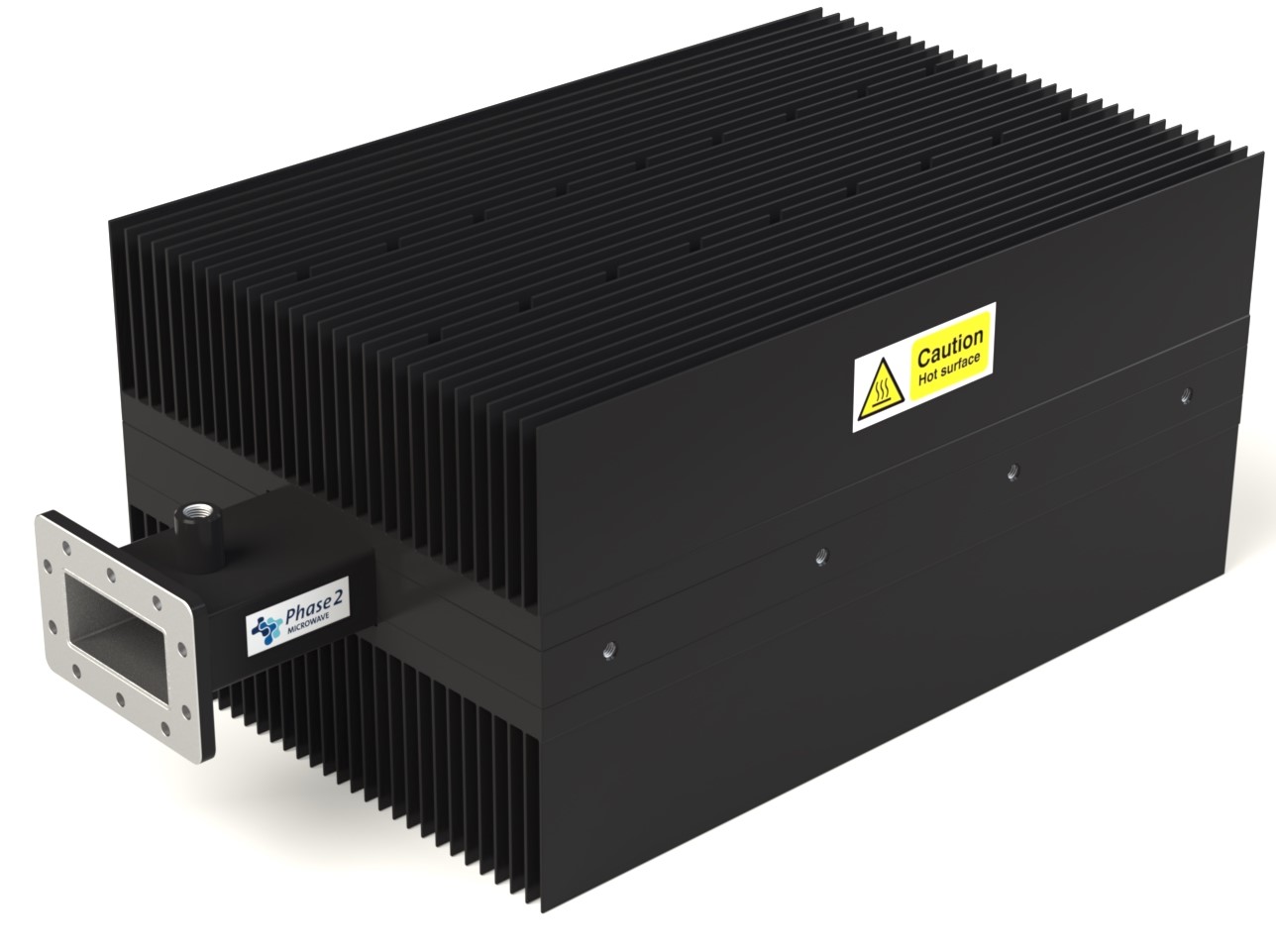

006322 | WG10 | 2.60-3.95 | 2.50 | >20 | 568 | |
|
 |

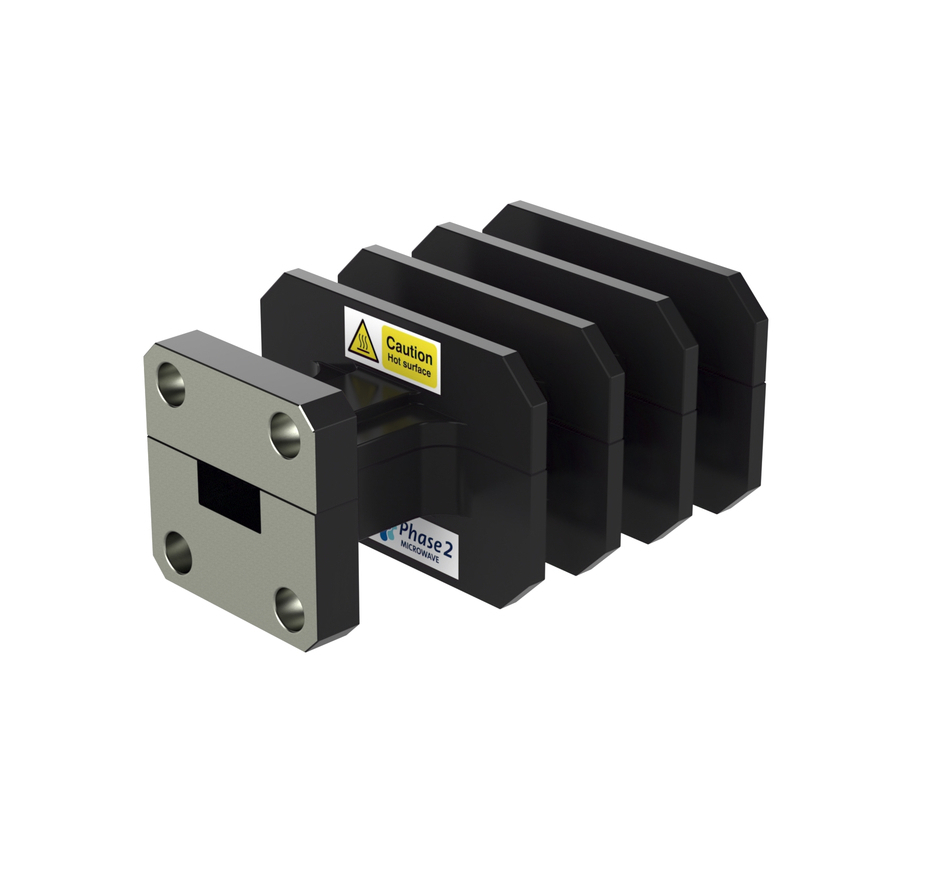

006859 | WG22 | 26.5-40.0 | 0.03 | <1.15 | 45 | |
|
 |

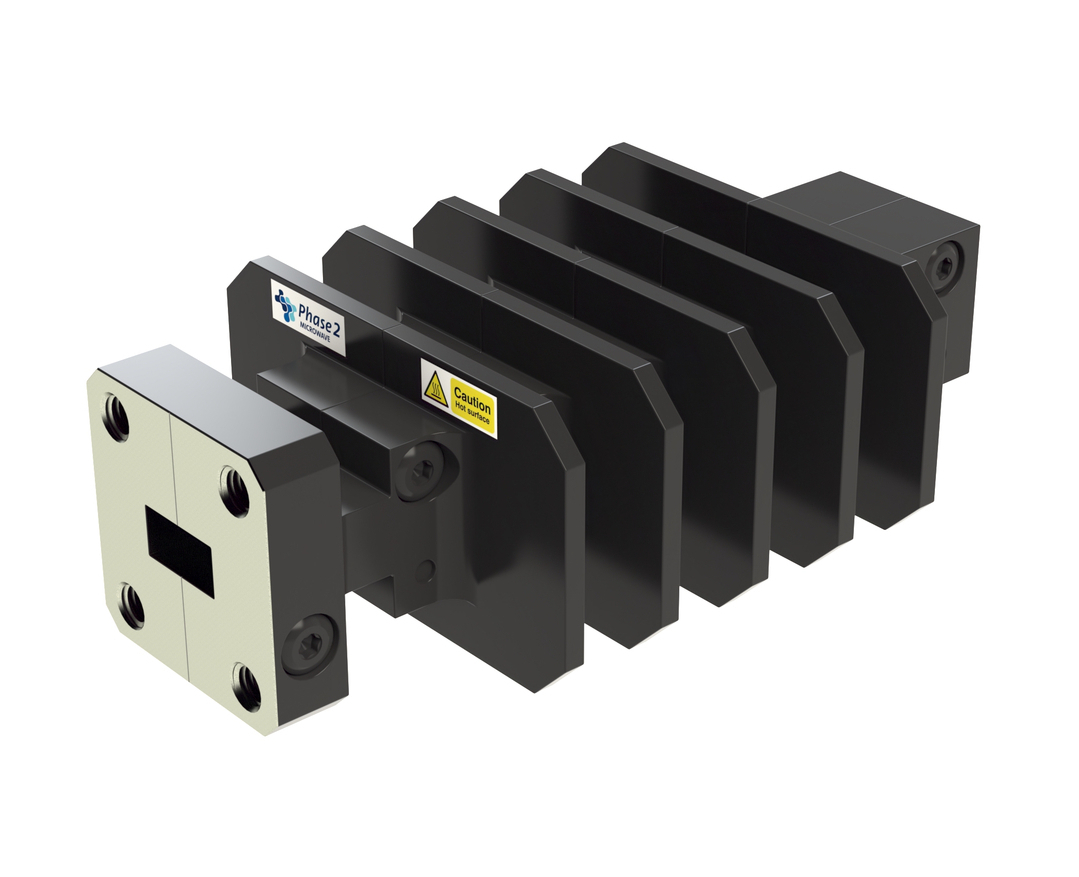

006860 | WG22 | 26.5-40.0 | 0.06 | <1.15 | 65 | |
|
