 Waveguide  Couplers and Hybrids


Phase 2 Microwave Ltd offer waveguide directional couplers and 3dB hybrid power combiners / splitters. These can be either machined from solid or fabricated using standard waveguide extrusion. The types of couplers offered include:

  • Crossguide couplers, with a waveguide of coaxial interface at the coupled port
  • Multi-hole couplers, with a waveguide of coaxial interface at the coupled port
  • Loop couplers, with a coaxial interface at the coupled ports.



All models can be offered with or without integral terminations on the isolated port and can have customer defined waveguide interfaces.

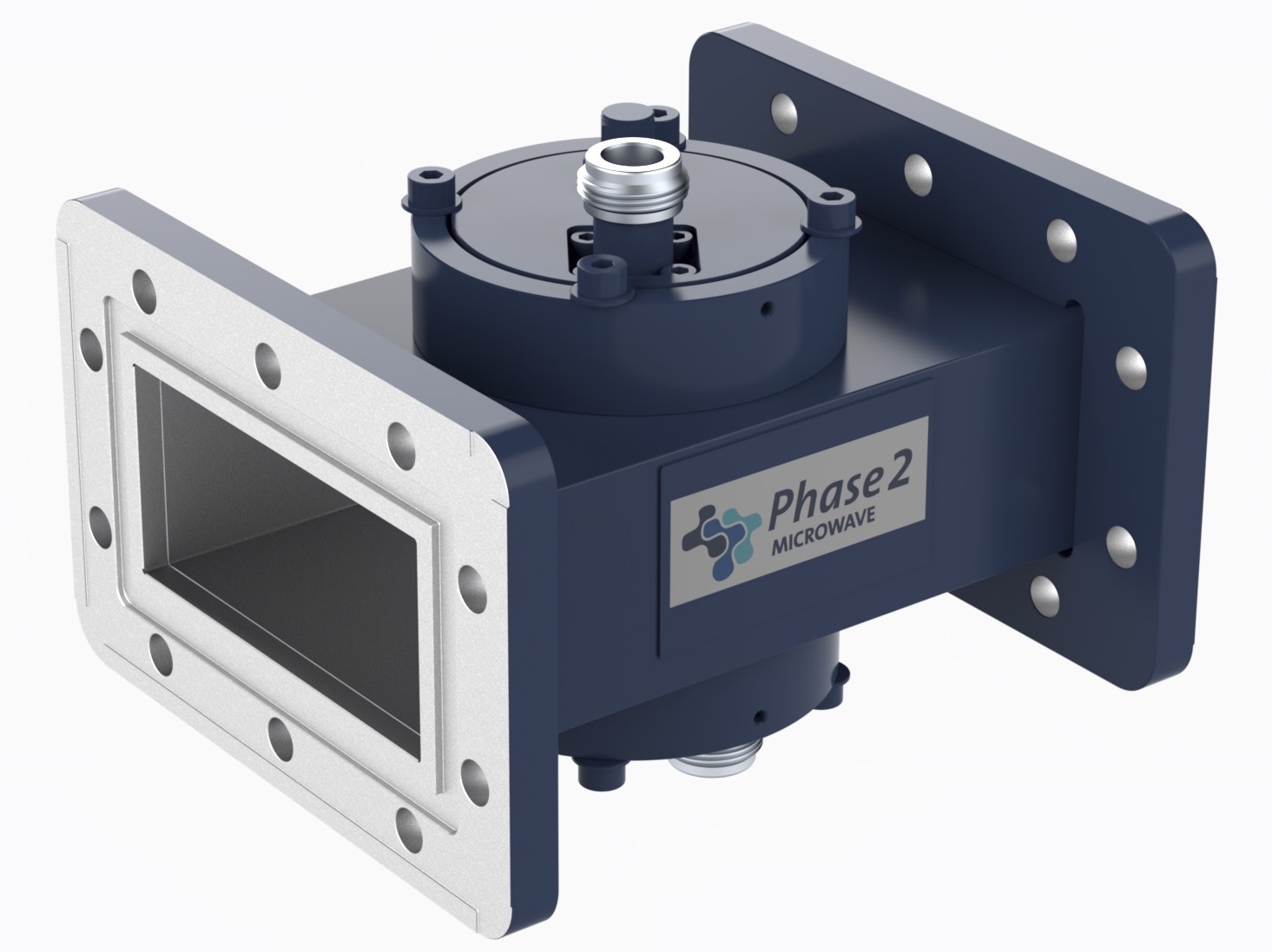

q977 wg 10 loop coupler 2 thumbnail



Note:  the below table is work in progress, if your requirement is not specified in the tables below, please contact us, we will be glad to help.

This email address is being protected from spambots. You need JavaScript enabled to view it.



Waveguide Couplers and Hybrids
Waveguide Size Type Coupling

Frequency
Start

Frequency
Stop
Flange
Type #1
Flange
Type #2
Overall Length Data Sheet
 WG10 Dual Loop 39-41 dB  2700MHz  2900MHz Specify
on RFQ
Specify
on RFQ
See Data Sheet oficina pdf
WG18

3dB Hybrid
Combiner/Splitter

3dB 15GHz  17GHz UBR140 UBR140 See Data Sheet oficina pdf
WG19 Dual Crossguide
Coupler
 40 & 60dB 15GHz 22GHz UBR180 UBR180 See Data Sheet oficina pdf
WG16 Dual Loop 30dB ±1.2dB 9GHz 10GHz UG-136 B/U UG-136 B/U See Data Sheet oficina pdf
