Waveguide Straights, Twists & Tapers

Waveguide Bends

 Waveguide  Straights

Phase2 offer straights up to a length of 3m as standard,   material and flanges to suit
customer requirements.

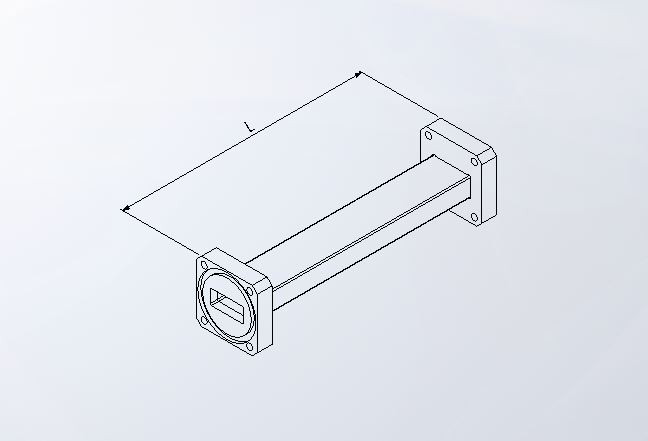

  Straight Waveguide



Note: If requirement is not specified in the tables below, please contact us, we wil be glad to help.

This email address is being protected from spambots. You need JavaScript enabled to view it.



Waveguide Straights
Waveguide
Size		 Recommended
Frequency
Range (GHz)		 Maximum
VSWR

Insertion
Loss/Metre
(dB)

 Max Power
(kW)

Flange  Type
#1

Flange Type
#2

 Waveguide Material

 Overall Length
WG8 1.70-2.60 1.03 0.010 5900 Specify
on RFQ		 Specify
on RFQ		 Aluminium/Copper Specify
on RFQ
WG9A 2.20-3.30 1.03 0.015 3800 Specify
on RFQ		 Specify
on RFQ		 Aluminium/Copper Specify
on RFQ
 WG10 2.60-3.95   1.05 0.019 2430  Specify
on RFQ		 Specify
on RFQ 		 Aluminium/Copper Specify
on RFQ
 WG11A  3.30-4.90   1.05 0.025 1600  Specify
on RFQ		 Specify
on RFQ 		 Aluminium/Copper Specify
on RFQ
WG12   3.95-5.85   1.05 0.036 1040  Specify
on RFQ		 Specify
on RFQ 		 Aluminium/Copper Specify
on RFQ
WG13  4.90-7.05    1.05 0.043 806  Specify
on RFQ		 Specify
on RFQ 		 Aluminium/Copper Specify
on RFQ
 WG14  5.85-8.20  1.05  0.058 544  Specify
on RFQ		 Specify
on RFQ		 Aluminium/Copper Specify
on RFQ
WG15   7.05-10  1.05 0.079  355  Specify
on RFQ		  Specify
on RFQ		 Aluminium/Copper Specify
on RFQ
WG16  8.20-12.40    1.05 0.110 229  Specify
on RFQ		  Specify
on RFQ		 Aluminium/Copper Specify
on RFQ
 WG17 10.00-15.00   1.05  0.130 178  Specify
on RFQ		 Specify
on RFQ 		 Aluminium/Copper Specify
on RFQ
 WG18 12.40-18.00    1.05 0.180 123  Specify
on RFQ		  Specify
on RFQ		 Aluminium/Copper Specify
on RFQ
 WG19  15.00-22.00   1.05 0.240 83  Specify
on RFQ		 Specify
on RFQ 		 Aluminium/Copper Specify
on RFQ
 WG20  18.00-26.50  1.05  0.370 48  Specify
on RFQ		 Specify
on RFQ 		 Aluminium/Copper Specify
on RFQ
 WG21  22.00-33.00  1.05  0.370 48  Specify
on RFQ		 Specify
on RFQ 		 Aluminium/Copper Specify
on RFQ
WG22  26.50-40.00  1.05  0.580 25  Specify
on RFQ		 Specify
on RFQ 		 Aluminium/Copper Specify
on RFQ

 Waveguide Twists

 Phase2 offer a variety of precision  twists  to meet customer needs.
Available in copper or aluminium and clockwise and anticlockwise orientations
from 2.6GHz - 40GHz.

As quite often these are bespoke depending on the length of twist,  we advise
to contact us This email address is being protected from spambots. You need JavaScript enabled to view it.  to discuss your requirements.

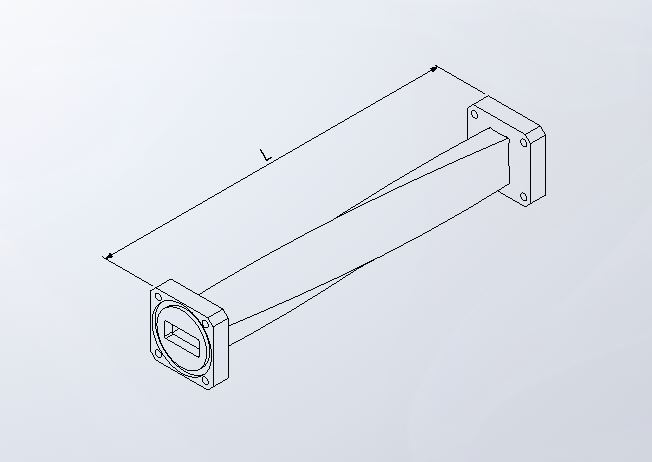

Twist Waveguide







 Waveguide Tapers

Tapers are Available in copper and aluminium from 2.6GHz to 40GHz
VSWR varies dependent on design and length of taper.

As quite often these are bespoke depending on the length of twist,  we advise
to contact us This email address is being protected from spambots. You need JavaScript enabled to view it.  to discuss your requirements.

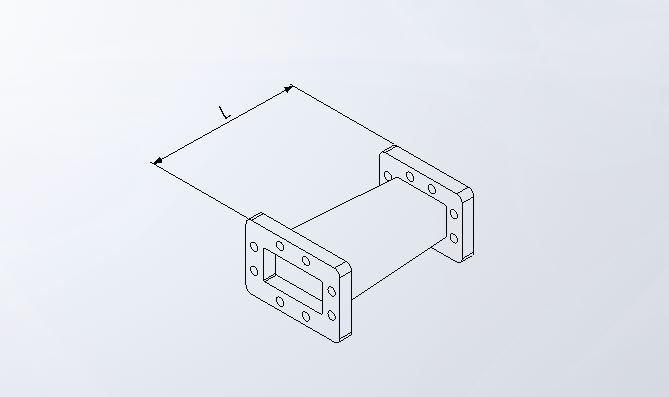

 Transition Waveguide
