RF High Precision Loads

RF Loads

Phase2 Microwave have a range of Low Power, High Precision    Loads/Terminations.



RF Precision Loads
  Model Waveguide Frequency
Band (GHz)		 VSWR
(Fullband)		 Max Power
CW Mean
(Watts)		 Flange
Type		 Waveguide
Material		 Fixing
Screw Size		 Overall
Length
(mm)		 3D Model
Download
product 006510 WG10 2.60-3.95 1.02  10 PDR Aluminium/Copper M-8 300 3D

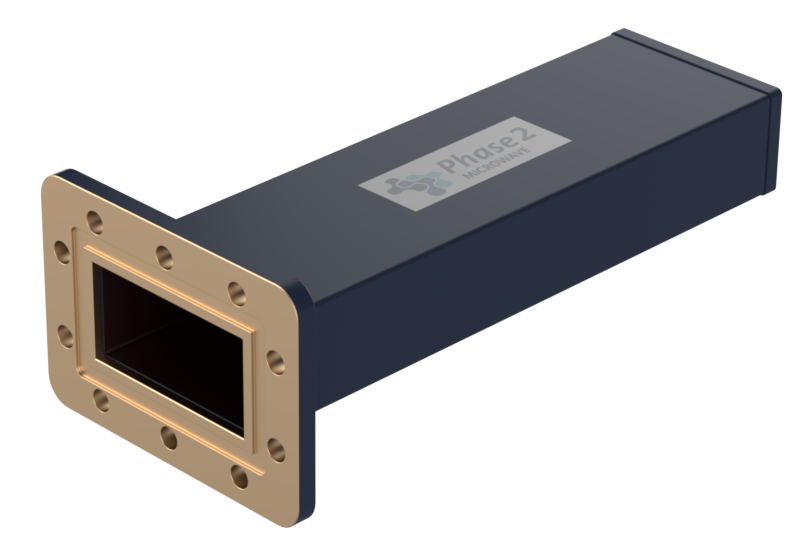

WG11A HIGH PRECISION LOAD   006511 WG11A 3.30-4.90 1.02  6 PDR Aluminium/Copper  M-6 210   3D

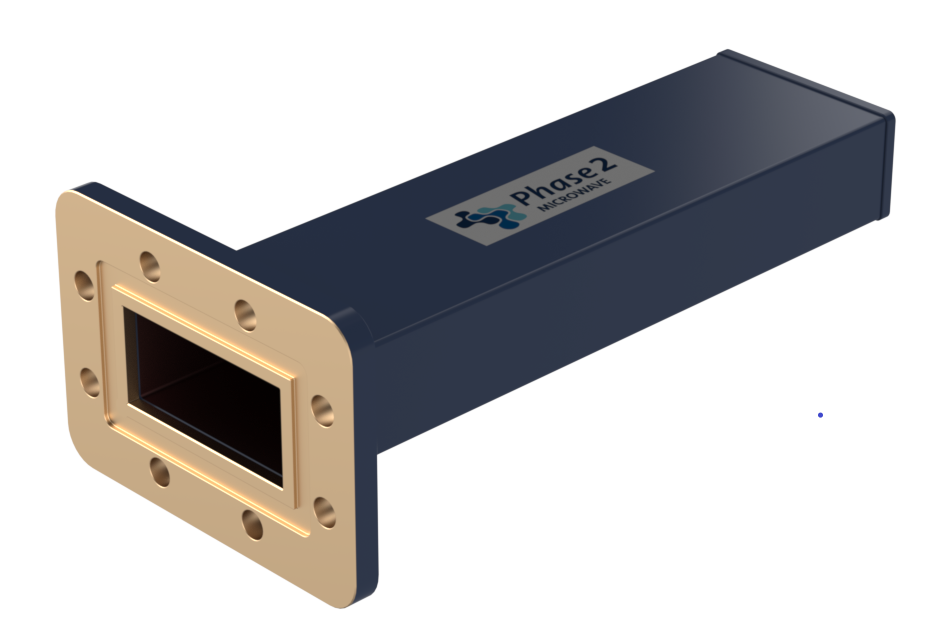

 wg12 high precision load  006512 WG12 3.95-5.85  1.02  5 PDR Aluminium/Copper  M-6  180  3D

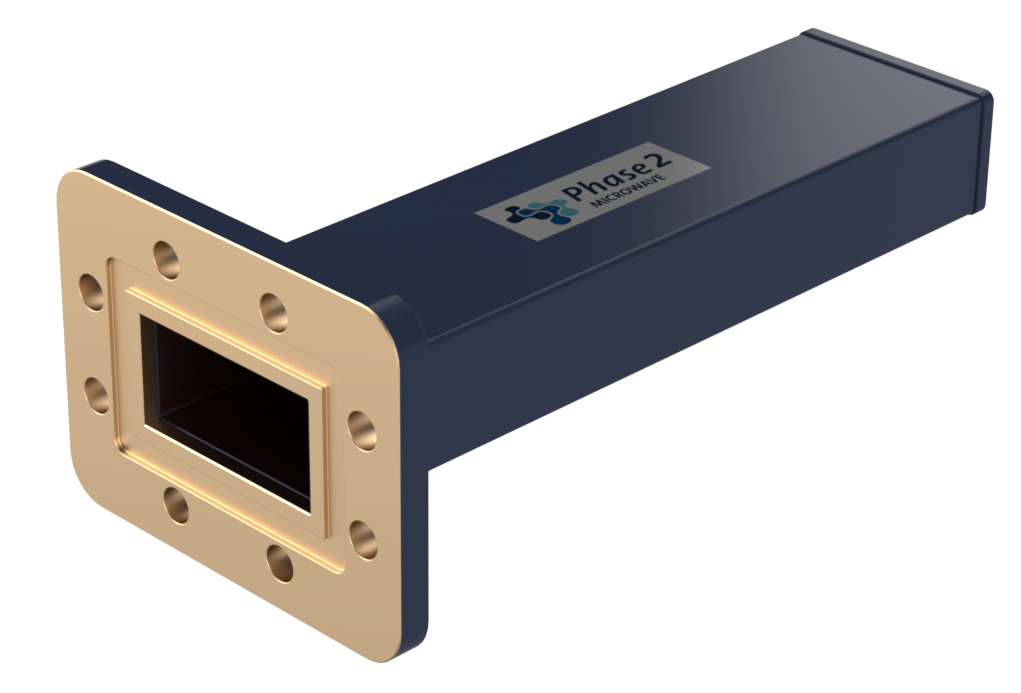

wg13 high precision load   006513  WG13 4.90-7.05  1.02 4  PDR Aluminium/Copper  M-5 165  3D

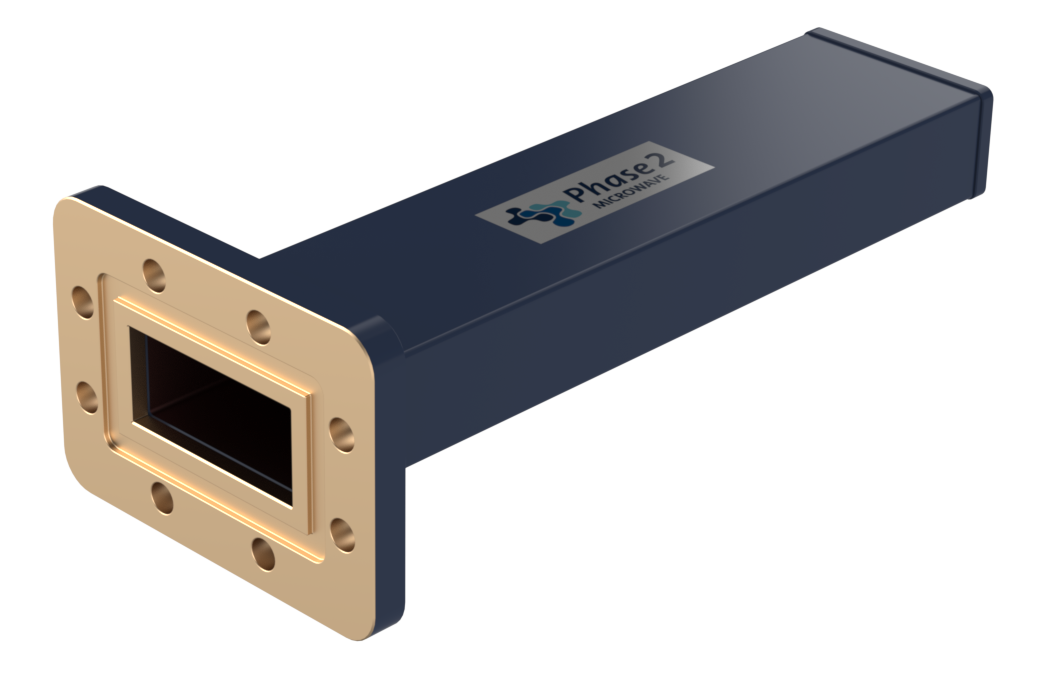

 wg14 high precision load 006514   WG14 5.85-8.20  1.02  3 PDR Aluminium/Copper M-5  150   3D

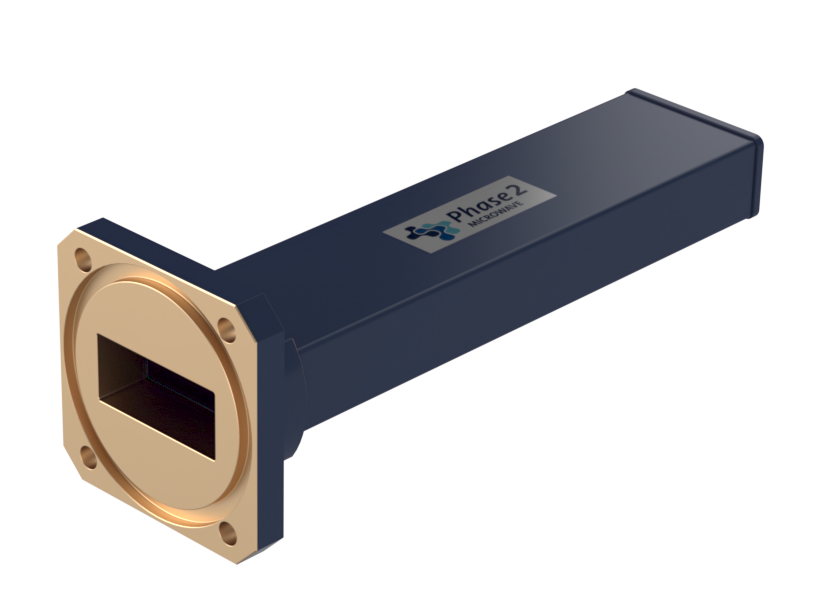

 wg15 high precision load  006515  WG15  7.05-10.00 1.02  2 PDR Aluminium/Copper M-4  137  3D

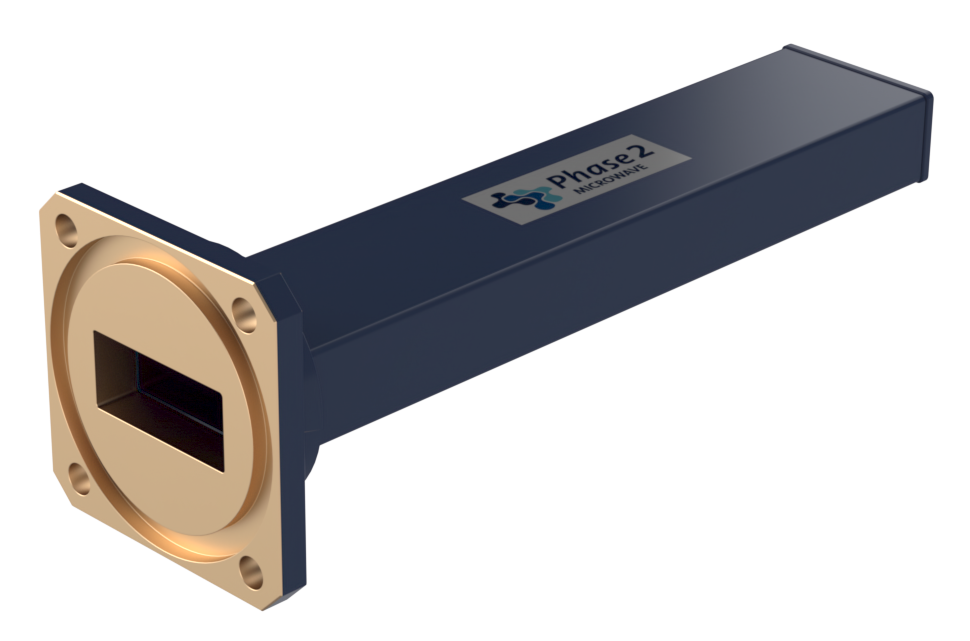

 wg16 high precision load  006516 WG16   8.20-12.40 1.02  1 PDR Aluminium/Copper M-4   125  3D

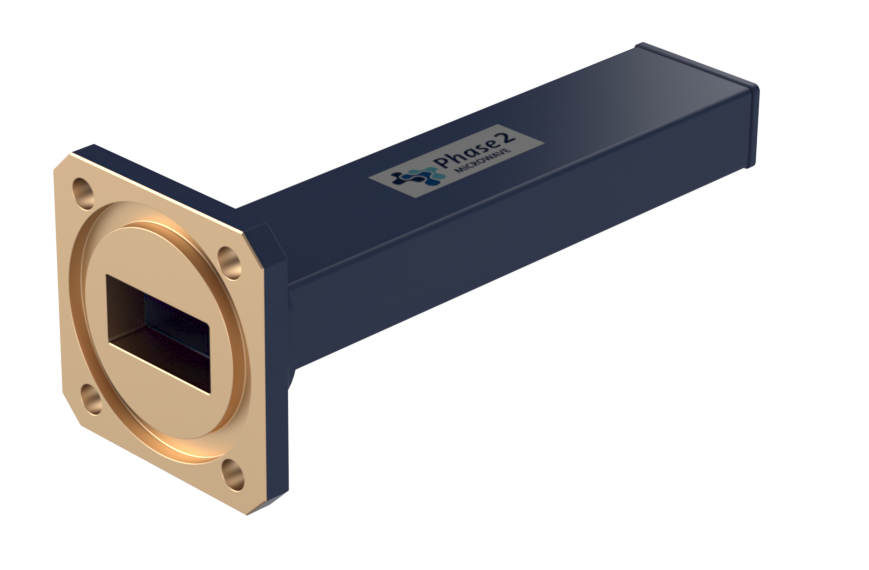

 wg17 high precision load 006517  WG17  10.00-15.00 1.02  0.75 PDR Aluminium/Copper M-3  100  3D

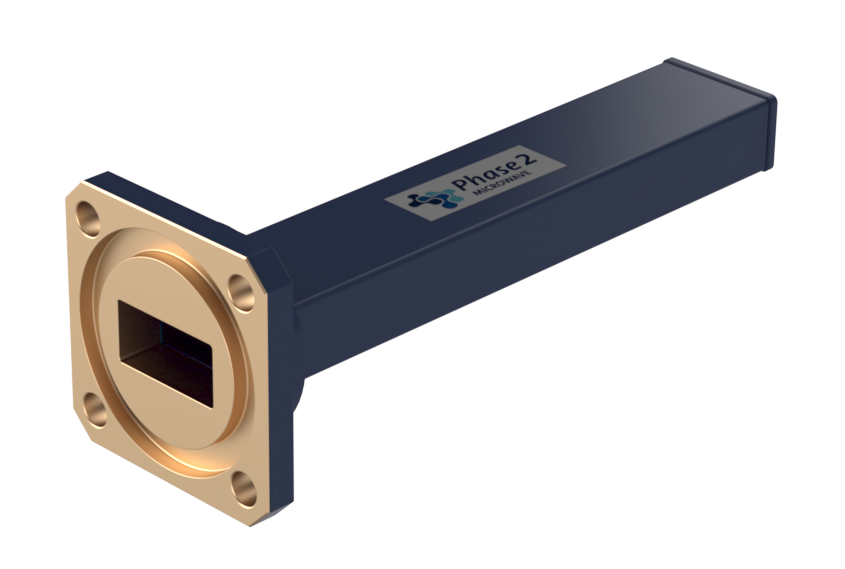

 wg18 high precision load  006518 WG18  12.40-18.00  1.02  0.74 PDR Aluminium/Copper M1.6  95  3D

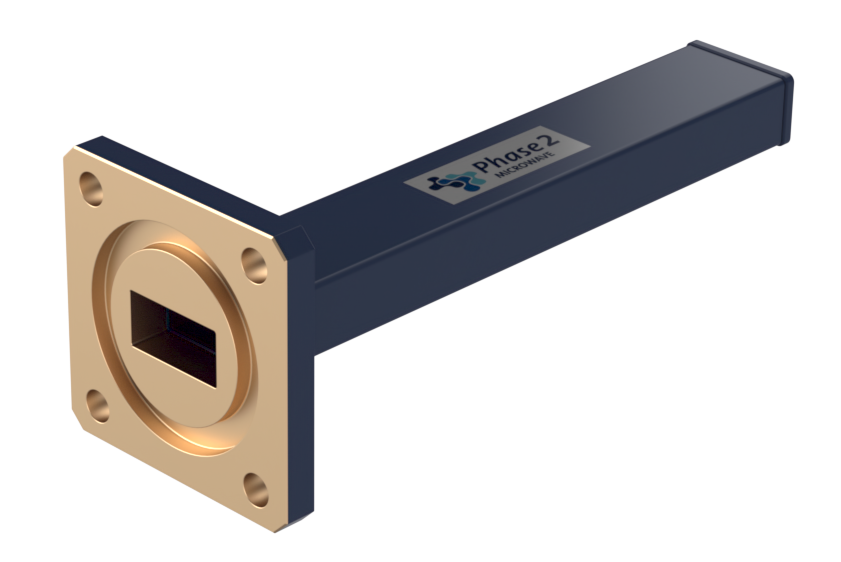

 wg19 high precision load 006519   WG19  15.00-22.00 1.02  0.73 PDR Aluminium/Copper M1.6   90  3D

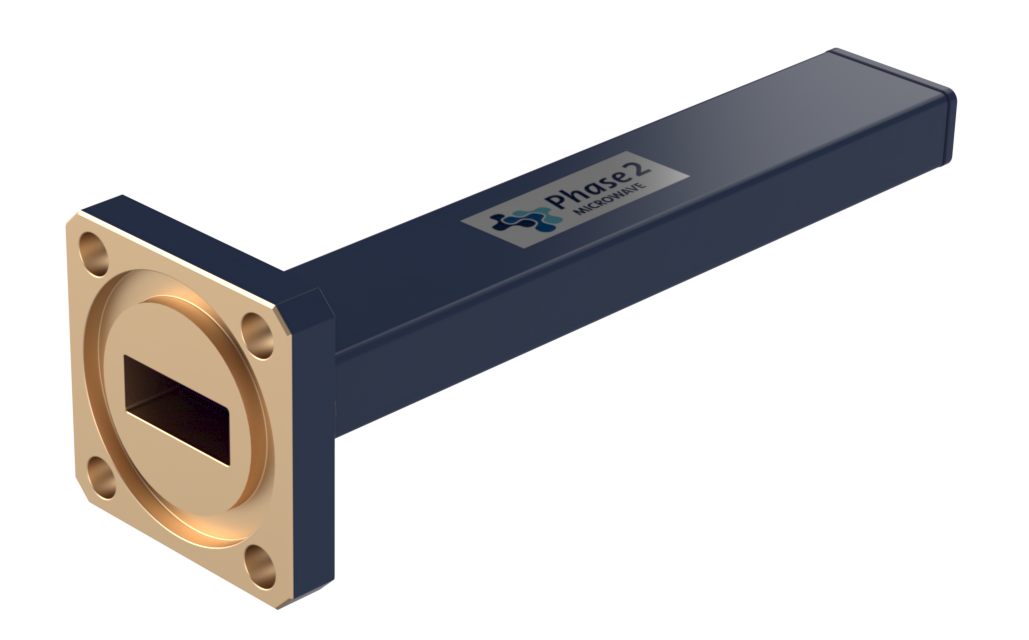

 wg20 high precision load  006520 WG20  18.00-26.50  1.02  0.73 PDR Aluminium/Copper  M1.6 75   3D

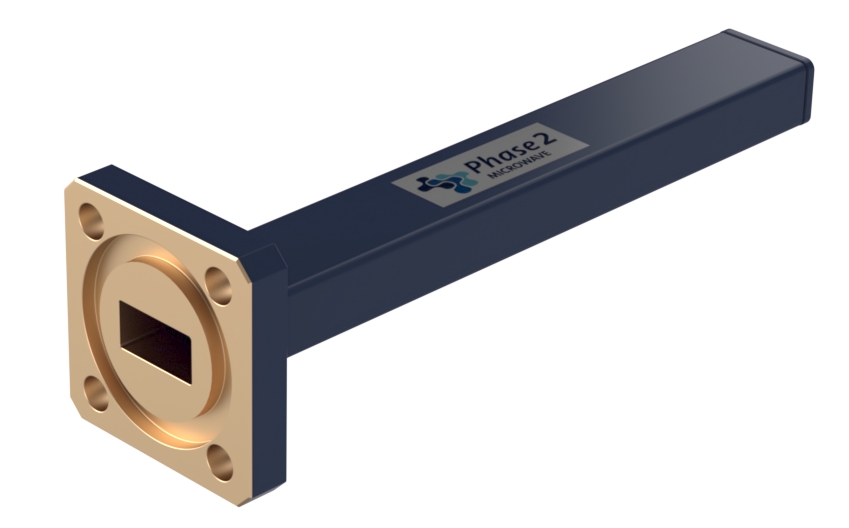

 wg21 high precision load 006521  WG21  22.00-33.00  1.02 0.7  PDR Aluminium/Copper M1.6  75  3D

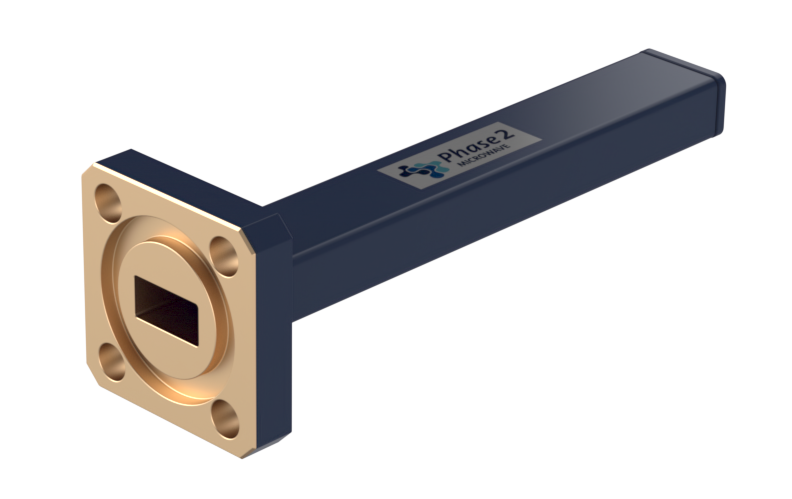

 wg22 high precision load 006522   Wg22 26.50-40.00  1.02  0.5 PDR Aluminium/Copper M1.6   60  3D
